Circuit of of power audio amplifier with ic tda2003 for 10 Watt potency

• Circuit of of power audio amplifier with ic tda2003 for 10 Watt potency

  • Circuit of of power audio amplifier with tda2003 for 10 Watts potency

      TDA 2003 has a better performance than the tda2002 using the same configuration of pins. Additional characteristics in relation to the tda 2002, it demands few components external, easy assembly, it is a low cost solution for an audio amplifier. A mounted amplifier with tda2003 presents protection against short of the pins with the earth. The good of setting up an amplifier with tda2003 is that he easy of being found at the market, even for who is far away from the great centers, has the possibility to do to buy him/it integrated by the internet. The tda2003 can be fed by batteries by a long period.


    Description of the circuit of the amplifier of 10 watts simple source

      It is treated of an assembly easy of being accomplished what is necessary it is just a tda2003 and one more half dozen of components.
      To facilitate the assembly the circuit it counts with a circuit plate printed.

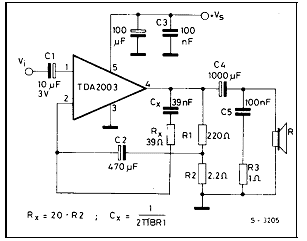

    Schematic of the amplifier with tda2003

    Suggestion of printed circuit board for assembly of the amplifier with tda2003. Real size.

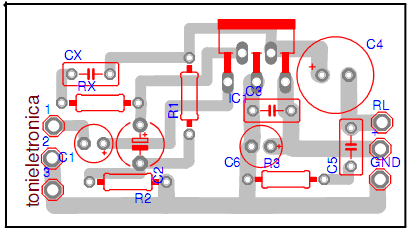

    PCI side of the components to guide in the assembly of the amplifier with tda2003.



    lists of components for assembly of the amplifier

    Resistors:


    • R1:220 Ω
    • R2: 2.2Ω
    • R3: 1Ω 1 watt
    • Rx: 39Ω See the datasheet paw to alter the value of Rx
    • C1: 2.2µF 25V electrolitic
    • C2:470µF 35V electrolitic
    • C3:0.1µF polyester or ceramic
    • C4:1000µF/35 V electrolitic
    • C5: 100nF polyester or ceramic
    • C6: 100µF 35v electrolitic
    • Cx 39nF See the datasheet paw to alter the value of Cx
    • IC1: TDA2003

    Reference: Tda7294 St microelectronics datasheet.
    www.st.com
